(VMware)SolarisにVMwareToolsを入れてみる

VMware ESXi(vSphere5.1)に Solaris10 をインストールしたんですが、そのままだと最適なパフォーマンスは発揮してくれません。

Hyper-VでもHyper-V統合サービスという仮想化支援ツールをゲストOSに入れたように、VMwareでもVMwareToolsという仮想化支援ツールをゲストに入れてやる必要があります。

手順としては、vSphere Clietから仮想マシンを右クリック→ゲスト→VMwareTools のインストール/アップグレード を押下します。

そうすると、仮想マシンにVMwareToolsの入ったディスクが挿入さらたようになります。

Solarisの場合、自動でメディアがあったら自動マウントしてくれました。

後はメディア内のファイルを解凍し、インストールを実行します。

今回は全てデフォルト値で決定しました。

# cp /cdrom/vmwaretools/vmware-solaris-tools.tar.gz /Desktop

# cd /Desktop

# gzip -d vmware-solaris-tools.tar.gz

# tar xvf vmware-solaris-tools.tar

# cd vmware-solaris-tools-distrib

# ./vmware-install.pl

A previous installation of VMware Tools has been detected.

The previous installation was made by the tar installer (version 4).

Keeping the tar4 installer database format.

You have a version of VMware Tools installed. Continuing this install will

first uninstall the currently installed version. Do you wish to continue?

(yes/no) [yes]

Uninstalling the tar installation of VMware Tools.

Stopping services for VMware Tools

Skipping VMware Tools services shutdown on the host: done

The removal of VMware Tools 9.0.0 build-782409 for Solaris completed

successfully.

Installing VMware Tools.

In which directory do you want to install the binary files?

[/usr/bin]

What is the directory that contains the init directories (rc0.d/ to rc6.d/)?

[/etc]

What is the directory that contains the init scripts?

[/etc/init.d]

In which directory do you want to install the daemon files?

[/usr/sbin]

In which directory do you want to install the library files?

[/usr/lib/vmware-tools]

The path "/usr/lib/vmware-tools" does not exist currently. This program is

going to create it, including needed parent directories. Is this what you want?

[yes]

In which directory do you want to install the documentation files?

[/usr/share/doc/vmware-tools]

The path "/usr/share/doc/vmware-tools" does not exist currently. This program

is going to create it, including needed parent directories. Is this what you

want? [yes]

The installation of VMware Tools 9.0.0 build-782409 for Solaris completed

successfully. You can decide to remove this software from your system at any

time by invoking the following command: "/usr/bin/vmware-uninstall-tools.pl".

Before running VMware Tools for the first time, you need to configure it by

invoking the following command: "/usr/bin/vmware-config-tools.pl". Do you want

this program to invoke the command for you now? [yes]

Initializing...

Making sure services for VMware Tools are stopped.

Stopping VMware Tools services in the virtual machine:

Guest operating system daemon: done

The VMware Host-Guest Filesystem allows for shared folders between the host OS

and the guest OS in a Fusion or Workstation virtual environment. Do you wish

to enable this feature? [no]

The vmblock enables dragging or copying files between host and guest in a

Fusion or Workstation virtual environment. Do you wish to enable this feature?

[no]

Detected X version 7.2.0

Please choose one of the following display sizes that X will start with:

[1] "640x480"

[2] "800x600"

[3] "1024x768"

[4] "1152x864"

[5] "1280x800"

[6] "1152x900"

[7] "1400x900"

[8] "1440x900"

[9] "1280x1024"

[10] "1376x1032"

[11] "1400x1050"

[12] "1680x1050"

[13] "1600x1200"

[14] "1920x1200"

[15] "2364x1773"

Please enter a number between 1 and 15:

[3]

Starting VMware Tools services in the virtual machine:

Switching to guest configuration: done

Guest memory manager: done

Guest operating system daemon: done

The configuration of VMware Tools 9.0.0 build-782409 for Solaris for this

running kernel completed successfully.

You must restart your X session before any mouse or graphics changes take

effect.

You can now run VMware Tools by invoking "/usr/bin/vmware-toolbox-cmd" from the

command line.

Enjoy,

--the VMware team

これでインストール完了です。

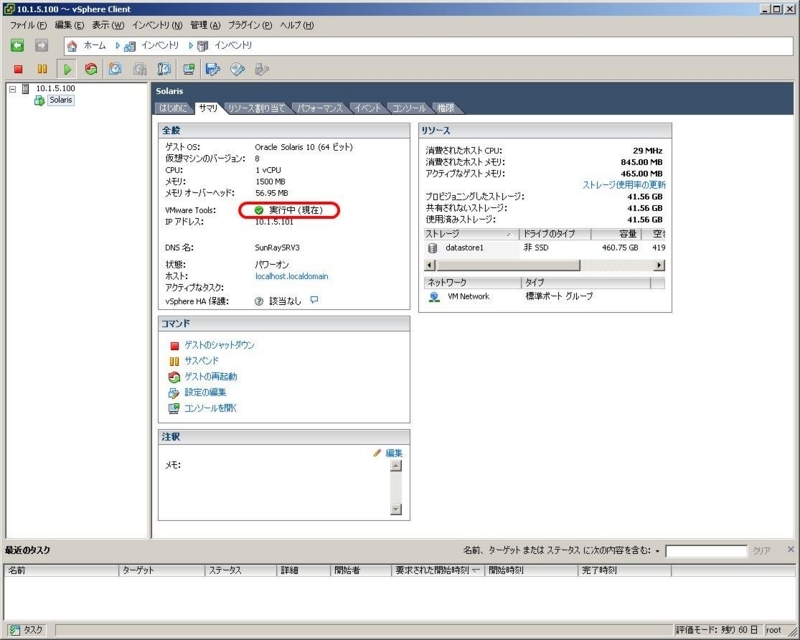

再起動とかもいらないようです。vSphere Client から確認してみると、インストール直後からVMware Tools が実行中になってました。

GUIコンソールでVMware Toolsを有効にするには一回ログオンし直す必要があるようです。

ログインし直すと、マウスカーソルもシームレスになり、いちいちコンソールから抜けるのに Ctrl+Alt を押す必要がなくなり楽になりました。

参考:

[VMware Fusion] VMware Toolsインストール手順(Solaris10) - Life with IT
